Python: GUI Apps

GUI Apps

Python provides a variety of ways to develop graphical user interfaces (GUIs). Among these are:

  1. Tkinter - the standard and most commonly Python GUI package. It is a free, thin object-oriented layer on top of Tcl/Tk. Both Tk and Tkinter are available on most Unix platforms and Windows platforms. It was was written by Fredrik Lundh.
  2. wxPython - a free, open-source, cross-platform GUI toolkit created in 1998 for the Python programming language.
  3. Jython - an implementation of the Python programming language designed to run on the Java platform and thus with access to the Java GUI tools such as Swing, AWT and SWT.

Example: Create a Window in Tkinter


	import tkinter
	win = tkinter.Tk()
	win.mainloop()


Output:

window created with tkinter


Tkinter provides a variety of controls. These include:

  • Button
  • Canvas
  • Checkbutton
  • Entry
  • Frame
  • Label
  • Listbox
  • Menubutton
  • Menu
  • Message
  • PanelWindow
  • ProgressBar
  • Radiobutton
  • Scale
  • Scrollbar
  • Text
  • Toplevel
  • TreeView
  • Spinbox
  • PanelWindow
  • LabelFrame
  • tkMessageBox

Tkinter also the following top-level windows:

  • tk_chooseColor - pops up a dialog box for user to select a color
  • tk_chooseDirectory - pops up a dialog box for user to select a directory
  • tk_dialog - creates a modal dialog and waits for a response
  • tk_getOpenFile - pops up a dialog box for user to select a file to open
  • tk_getSaveFile - pops up a dialog box for user to select a file to save
  • tk_messageBox - pops up a message window and waits for user response
  • tk_popup - posts a popup menu
  • toplevel - creates and manipulates toplevel widgets

Example: Displaying Text and an Image in a Window


	import tkinter as tk

	root = tk.Tk()
	logo = tk.PhotoImage(file="Alan_Turing_Memorial.png")

	win1 = tk.Label(root, image=logo).pack(side="right")

	explanation = """The Alan Turing memorial statue in
			Sackville Park, Manchester."""

	win2 = tk.Label(root,
				  justify=tk.LEFT,
				  padx = 8,
				  text=explanation).pack(side="left")
	root.mainloop()


Output:

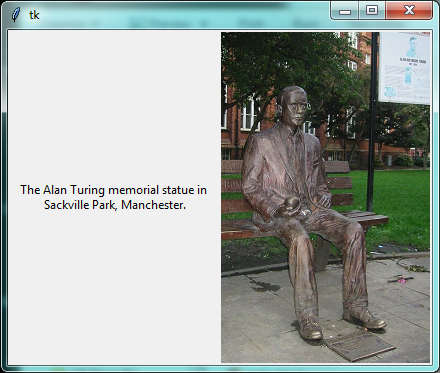

Displaying Text and an Image in a Window


Example: Quit button using Tkinter Pack Geometry Manager


	from tkinter import *

	win = Frame()
	win.pack()
	Button(win, text='Quit',  command=win.quit).pack(side=RIGHT)

	win.mainloop()


Output:

window created with tkinter


Example: Text Labels


	import tkinter as tk

	root = tk.Tk()
	tk.Label(root,
			 text="Row, row, row your boat,",
			 fg = "blue",
			 font = "Arrial").pack()
	tk.Label(root,
			 text="Gently down the stream.",
			 fg = "yellow",
			 bg = "blue",
			 font = "Verdana 10 bold").pack()
	tk.Label(root,
			 text="Merrily, merrily, merrily, merrily,",
			 fg = "black",
			 bg = "yellow",
			 font = "Helvetica 16 bold italic").pack()
 	tk.Label(root,
			 text="Life is but a dream.",
			 fg = "cyan",
			 bg = "dark green",
			 font = "Times 18 bold italic").pack()

	root.mainloop()


Output:

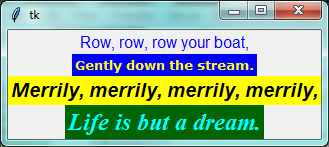

Text Labels


Example: Passing Data to a Function


	import tkinter as tk

	def display(out):
		tk.Label(root,
			text=out,
			fg="blue",
			font="Arrial").pack()

	root = tk.Tk()
	root.title("IP Function Example")

	display("Greetings")
	button = tk.Button(root, text='Quit', width=25, command=root.destroy)
	button.pack()
	root.mainloop()


Output:

Passing Data to a Function


Example: Seconds Counter

The following Python program will display a counter that increment by one each second along with a Stop button that will stop end the program and close the window.


	import tkinter as tk

	counter = 0
	def counter_label(label):
	  def count():
		global counter
		counter += 1
		label.config(text=str(counter))
		label.after(1000, count)
	  count()

	root = tk.Tk()
	root.title("Second Counter")
	label = tk.Label(root, fg="blue")
	label.pack()
	counter_label(label)
	button = tk.Button(root, text='Stop', width=25, command=root.destroy)
	button.pack()
	root.mainloop()


Output:

Seconds Counter


Example: Input Box, Button, and If Statement

In the example below, the user is asked to enter a text into a textbox. If the user enters "awesome" then the program responds "Correct". If the user does not enter "awesome", then the program responds "Incorrect".


	import tkinter
	root = tkinter.Tk()
	root.geometry("250x250")
	root.title("IF Statement Example")

	start = tkinter.Entry(root)
	start.pack()
	print(start.get())

	def on_button():
		if start.get() == "awesome":
			slabel = tkinter.Label(root, text="Correct")
			slabel.pack()
		else:
			slabel = tkinter.Label(root, text="Sorry. Incorrect")
			slabel.pack()

	button = tkinter.Button(root, text="Check Answer", command=on_button)
	button.pack()

	root.mainloop()


Output:

Input Box, Button, and If Statement


Example: Input Box, Button, and If Statement

The example below allows user input to be evaluated as a float data type to determine an exam letter grade.


	import tkinter
	root = tkinter.Tk()
	root.geometry("250x250")
	root.title("IF Statement Example")

	start = tkinter.Entry(root)
	start.pack()
	print(start.get())

	def on_button():
		if float(start.get()) >= 90:
			slabel = tkinter.Label(root, text="You achieved an A")
			slabel.pack()
		elif float(start.get()) >= 80:
			slabel = tkinter.Label(root, text="You achieved an B")
			slabel.pack()

	button = tkinter.Button(root, text="Enter Your Exam Score to Find out Grade", command=on_button)
	button.pack()

	root.mainloop()


Output:

Input Box, Button, and If Statement
